Arc Sensor

The Arc Sensor detects objects that intersect a curve. It works just like the Ray Sensor in that it detects all objects up to the first obstruction. The arc is broken up into line segments and a raycast is done on each.

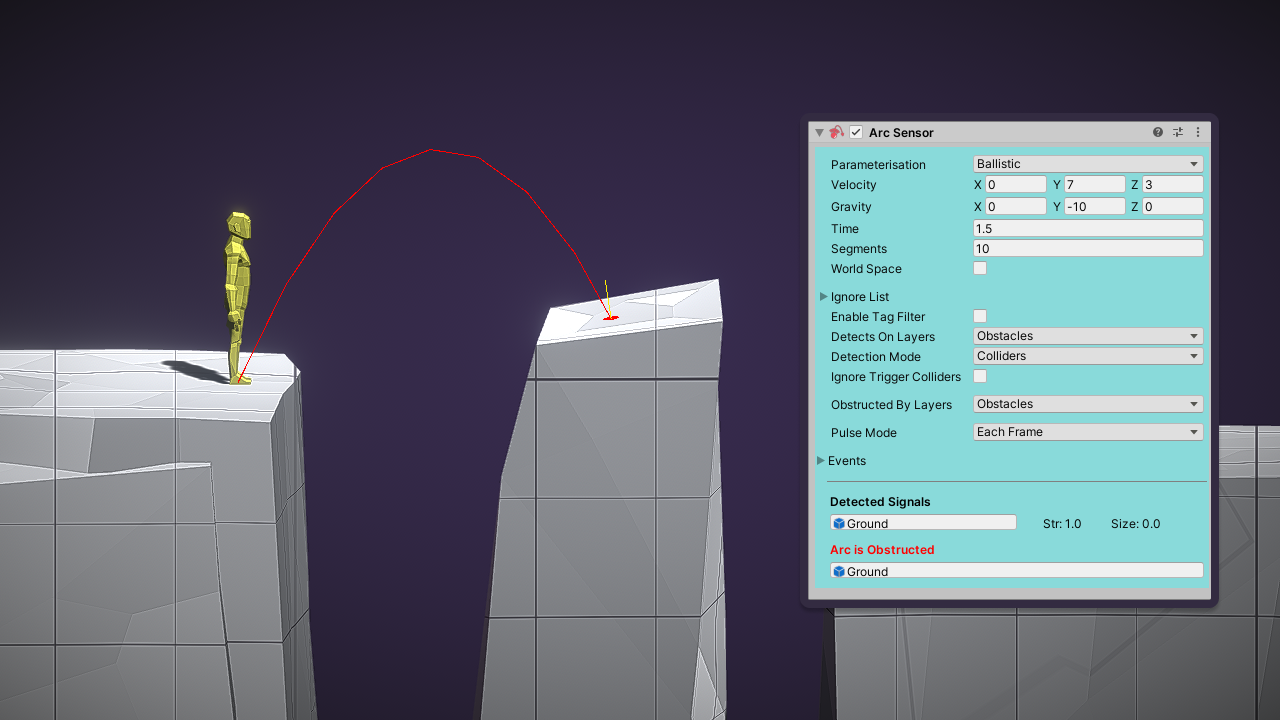

An Arc Sensor detects a platform that can be jumped to

Output Signals

  • Object - Collider.gameObject or Collider.attachedRigidBody.gameObject depending on Detection Mode
  • Strength - Set to 1
  • Shape - Zero-size Bounds centred at the point of intersection

An obstruction is not represented by a Signal. Obstructions are not defined to be detected, although it is possible for the same GameObject to be detected and obstructing simultaneously.

you can retrieve details about the intersection of the ray with each object. Access it with the GetDetectionRayHit() or GetObstructionRayHit() methods.

Configuration

Parameterisation

How the arc is parameterised. Two choices are available:

  • Bezier - A quadratic bezier curve defined by three points in local space.
  • Ballistic - The arc of a projectile with constant velocity and acceleration over some amount of time.

Segments

The number of straight line segments the arc is broken into. The sensor does a raycast over each segment so it's best to keep the number as low as possible. The segments have variable length to fit the curve more closely.

Layers

See Ray Sensor

Filters

See Ray Sensor

Optimisation Considerations

See Ray Sensor

API

API page
